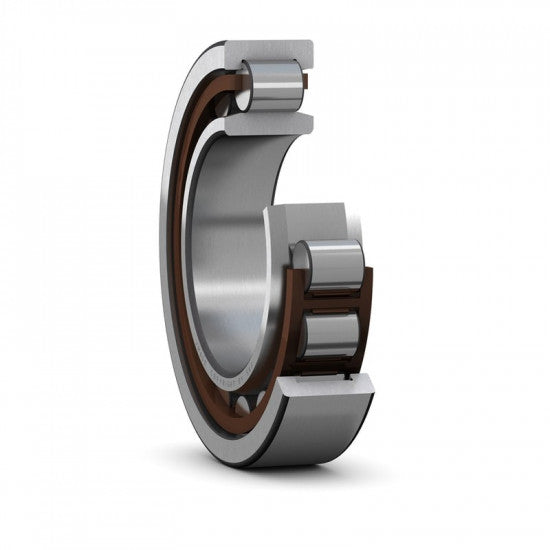

SKF NU 210 ECP/C3 Roller Bearing

SKF Explorer NU 210 ECP/C3 - single-row, dismountable radial roller bearing with a glass-fiber reinforced polyamide 6.6 window cage guided by rollers, higher load capacity, and with radial internal clearance greater than normal. The bearing can operate at temperatures up to +120°C. The outer ring of the NU 210 bearing has two guiding flanges, while the inner ring is without flanges, allowing axial movement of the shaft relative to the housing in both directions. The rollers are guided by the flanges. The bearing can be easily disassembled for installation, separating the outer ring with the cage and rollers from the inner ring. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to precision class P6.
