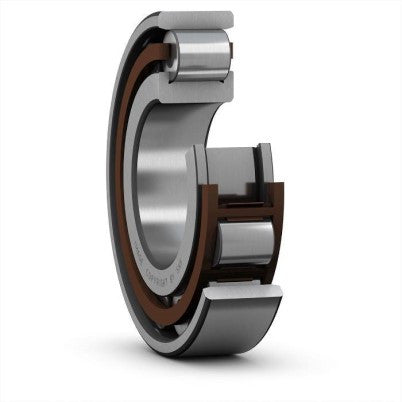

SKF N 314 ECP Roller Bearing

SKF Explorer N 314 ECP - single-row, dismountable radial roller bearing with a glass-fiber reinforced polyamide 6.6 window cage guided by rollers, offering higher load capacity and normal radial internal clearance. The bearing can operate at temperatures up to +120°C. The inner ring of the bearing has two guiding flanges, while the outer ring is without flanges, allowing axial displacement of the shaft relative to the housing in both directions. The rollers are guided by flanges. For easier assembly, the bearing can be split into the inner ring along with the cage and rollers, and the outer ring. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering significant improvements in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than standard bearings. The dimensional accuracy corresponds to the P6 accuracy class.
