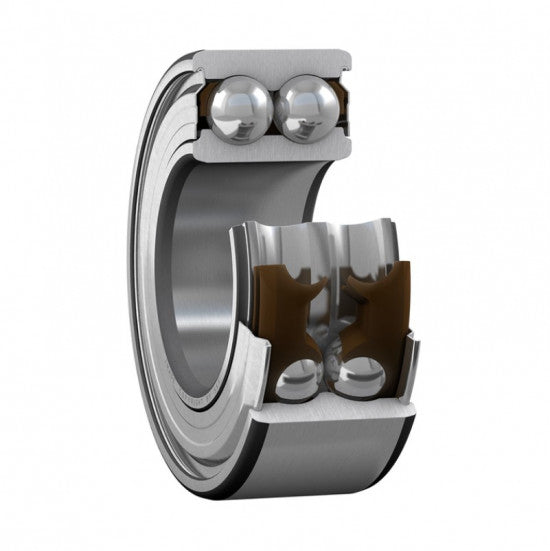

SKF 3207 A-2ZTN9/MT33 Angular Contact Ball Bearing

SKF Explorer 3207 A-2ZTN9/MT33 - non-disassemblable double-row angular contact ball bearing with optimized internal construction without filling grooves, plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls, double-sided non-contact metal seals, and normal axial clearance. The cover plate fits against the smooth inner ring. The bearing is designed for mounting with a rotating inner ring and is filled with high-quality grease class 3 according to the NLGI scale with a temperature range from -30°C to +120°C for the entire service life of the bearing. If the outer ring rotates, there may be a loss of grease at higher speeds. The bearing has a contact angle of 30° and the rolling elements are arranged like a paired single-row angular contact ball bearing in an O configuration, meaning back-to-back, and can transmit radial and bi-directional axial loads. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operating parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to precision class P6.
