SKF 3206 ATN9/C3 Angular Contact Ball Bearing

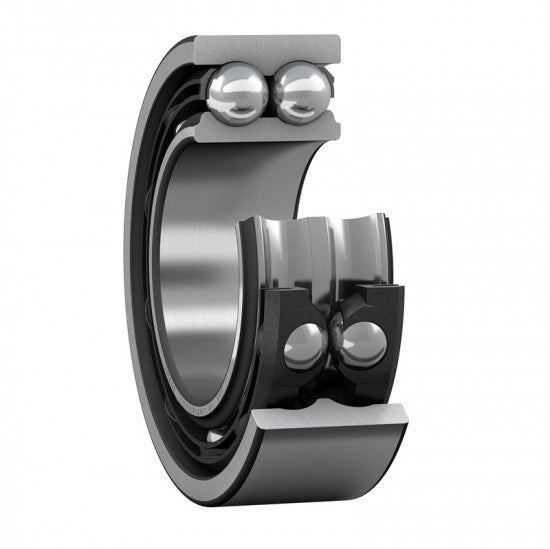

SKF Explorer 3206 ATN9/C3 - non-disassemblable double-row angular contact ball bearing with optimized internal design without filling grooves, a plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls and with axial play greater than normal. The bearing has a contact angle of 30° and the rolling elements are arranged like a paired set of single-row angular contact ball bearings in an O configuration, meaning back-to-back, allowing it to transmit radial and bidirectional axial loads and operate at temperatures up to +120°C. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to the P6 accuracy class.
