SKF 3204 A-2RS1TN9/MT33 Angular Contact Ball Bearing

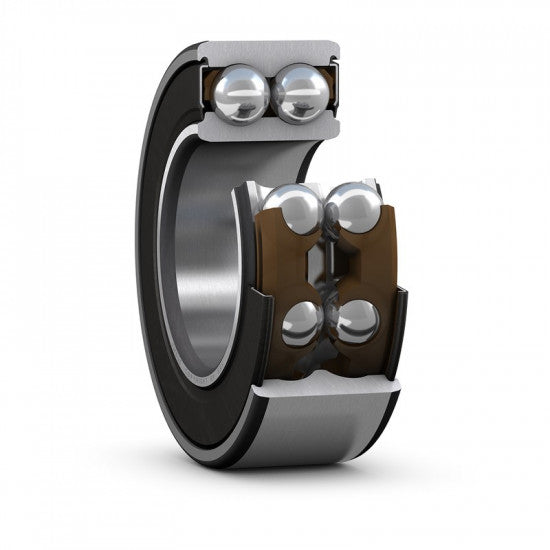

SKF Explorer 3204 A-2RS1TN9/MT33 - non-separable double-row angular contact ball bearing with an optimized internal design without filling grooves, a polyamide 6.6 reinforced plastic cage guided by two rows of balls, double-sided friction seals, and normal axial clearance. The seals are made of oil-resistant and wear-resistant rubber, which is vulcanized onto a metal reinforcement and pressed into grooves in the outer ring. The sealing edges rest against the beveled edges of the inner ring. The bearing is filled with high-quality grease of NLGI grade 3 with a temperature range from -30°C to +120°C for the entire lifespan of the bearing. The bearing has a contact angle of 30° and the rolling elements are arranged like a paired set of single-row angular contact ball bearings in an O configuration, meaning back-to-back. The bearing can transmit radial and bi-directional axial loads. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than standard. The dimensional accuracy corresponds to precision class P6.
