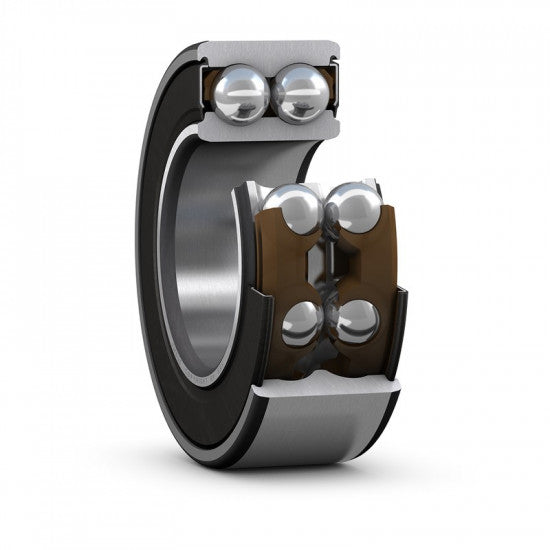

SKF 3202 A-2RS1TN9/MT33 angular contact ball bearing

SKF Explorer 3202 A-2RS1TN9/MT33 - non-disassemblable double-row angular contact ball bearing with optimized internal construction without filling grooves, plastic cage made of polyamide 6.6 reinforced with glass fibers guiding two rows of balls, double-sided friction seals and normal axial clearance. The seals are made of oil-resistant and wear-resistant rubber, which is vulcanized onto a metal reinforcement and are pressed into grooves in the outer ring. The sealing edges rest against the beveled edges of the inner ring. The bearing is filled with high-quality grease class 3 according to the NLGI scale with a temperature range from -30°C to +120°C for the entire service life of the bearing. The bearing has a contact angle of 30° and the rolling elements are arranged as in a paired set of single-row angular contact ball bearings in an O configuration, i.e., back to back. The bearing can transmit radial and bidirectional axial loads. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to the precision class P6.
