SKF 2309 EKTN9 Angular Contact Ball Bearing

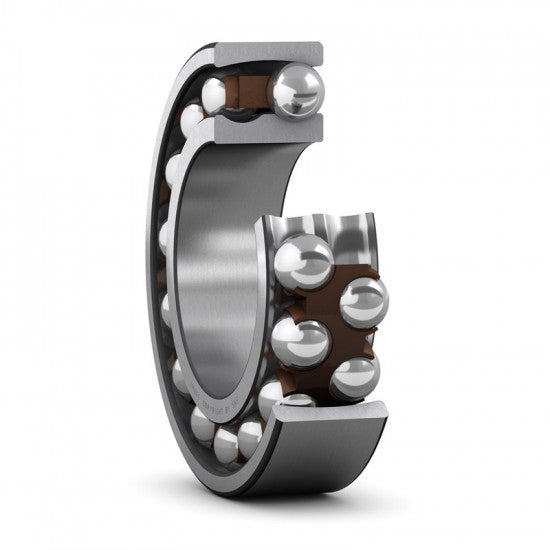

SKF 2309 EKTN9 - non-disassemblable double-row angular contact ball bearing with a tapered bore 1:12, optimized internal design, plastic cage made of glass fiber reinforced polyamide 6.6 guided by two rows of balls and with normal radial clearance. The outer ring has a common spherical raceway for both rows of balls, allowing the bearing to tilt and compensate for misalignment or shaft deflection relative to the housing. The bearing can operate at temperatures up to +120°C. The bearing is mounted on a cylindrical shaft using a H 2309 locking sleeve.
