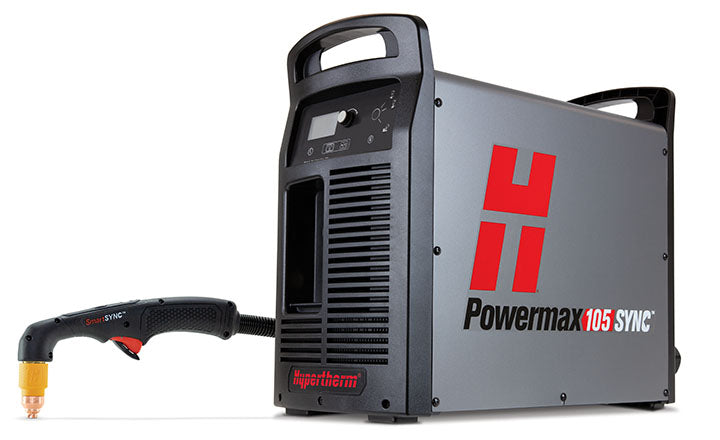

Powermax105 SYNC Plasma Cutting Machine, Hand Torch 7.6m
Professional plasma system for hand cutting and grooving materials up to 38 mm thick and machine piercing materials up to 25 mm thick. The new Powermax105 SYNC air plasma system cuts quickly through thick materials with maximum power and performance. With a permissible duty cycle of 100%, a piercing capability of 25 mm, and a metal removal rate during grooving of 12.5 kg/hour, the Powermax105 SYNC is a tool for any cutting and grooving in the industry. The new Duramax HyampTM torch series can meet the requirements of the widest range of cutting and grooving applications.
Powermax105 SYNC Plasma Cutting Machine, Hand Torch 7.6m
Description
Description
.png)
Product Specifications
Torches
Powermax 105 SYNC (input voltage 400 V, 3 phases, CE certification)
| Hand Torch 75° | ||
|---|---|---|
|
Power Sources |
7.6 m | 15.2 m |
| Standard Power Source 400 V | 059690 | 059691 |
| Long Machine Torch 180° 7.6 m | |||
|---|---|---|---|
| Power Sources | with Remote Control Hanging Panel | without Remote Control Hanging Panel | |
| Power Source with CPC Port and Voltage Divider 400 V | 059694 | 059693 | |
| Power Source with CPC Port, Voltage Divider, and Serial Port 400 V | 059697 |
|
|
| Long Machine Torch 180° 15.2 m | |||
|---|---|---|---|
| Power Sources | with Remote Control Hanging Panel | without Remote Control Hanging Panel | |
| Power Source with CPC Port and Voltage Divider 400 V | 059695 | 059681 | |
| Power Source with CPC Port, Voltage Divider, and Serial Port 400 V | 059698 | ||
.png)
| Power | Thickness | Cutting Speed |
|---|---|---|
| Recommended | 32mm | 500 mm/min |
| 38mm | 250 mm/min | |
| Separation (manual cutting) | 50mm | 125 mm/min |
| Piercing | 22mm |
Cartridges
.png)
Maximum Productivity
- Work operations will be completed faster due to the cutting speed, which is 5 times higher than with oxy-fuel for carbon steel of 12 mm thickness.
- Excellent cut quality and grooving save time in grinding and edge preparation.
- Cutting time is maximized at a permissible 100% duty cycle.
Low Operating Costs
- By extending the lifespan of consumable parts, costs can be reduced up to four times compared to other systems within this power range.
- Electrode end-of-life detection protects the torch and workpiece from damage caused by automatic power interruption when the electrode reaches its end of life.
Ease of Use in Cutting and Grooving
- No need to change air pressure. Smart Sense™ technology ensures consistently correct settings.
- Allows for various types of work using a multifunctional, easy-to-operate torch.
Designed and Tested to Withstand the Harshest Conditions
- Duramax™ Hyamp torches are designed to withstand heavy impacts and high temperatures.
- SpringStart™ technology ensures stable ignition and higher reliability of the torch.
- Maximum uptime with low maintenance.
Product Line Overview
| Cutting Performance | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Recommended | 10 mm | 10 mm | 10 mm | 20 mm | 25 mm | 32 mm | 38 mm |
| Separation | 16 mm | 16 mm | 16 mm | 32 mm | 38 mm | 50 mm | 57 mm |
| Output Range | 15-30 | 15-30 | 15-30 | 20-65 | 25-85 | 30-105 | 30-125 |
| Input Phases | Single | Single | Three | Three | Three | Three | Three |
| Applications | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Machine Cutting | ● | ● | ● | ● | ● | ||
| Drag Cutting | ● | ● | ● | ● | ● | ||
| FineCut | ● | ● | ● | ● | ● | ● | ● |
| Marking | ● | ● | |||||
| Precision Grooving | ● | ||||||
| Maximum Groove Control | ● | ● | ● | ● | ● | ||
| Grooving with Maximum Removal | ● | ● | ● | ● | |||
| HyAccess™ | ● | ● | ● | ● | ● | ● | |
| FlushCut™ | ● | ● | ● | ● | ● |
