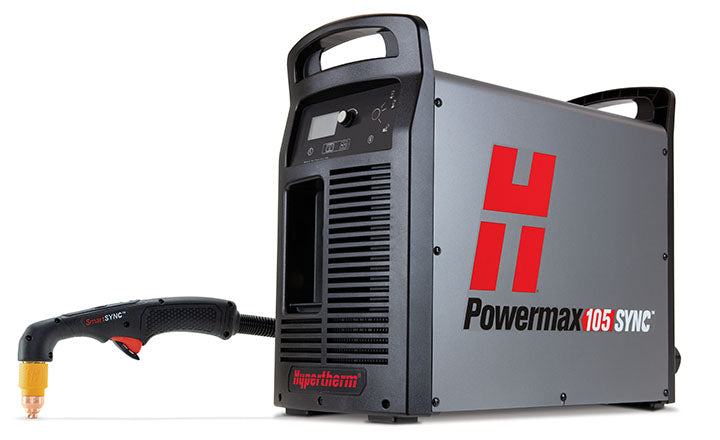

Powermax105 SYNC Plasma Cutting Machine, 15m Hand Torch
Professional plasma system for manual cutting and grooving of materials up to 38 mm thick and machine piercing of materials up to 25 mm thick. The new Powermax105 SYNC air plasma system cuts quickly through thick materials with maximum power and efficiency. A permissible duty cycle of 100%, a piercing capability of 25 mm, and a metal removal rate of 12.5 kg/hour during grooving make the Powermax105 SYNC a tool for any cutting and grooving in industry. The new Duramax Hyamp™ torch series is capable of meeting the requirements for the widest range of cutting and grooving applications.
Powermax105 SYNC Plasma Cutting Machine, 15m Hand Torch
Description
Description
.png)
Product Specifications
Torches
Powermax 105 SYNC (input voltage 400 V, 3 phases, CE certification)
| 75° Hand Torch | ||
|---|---|---|
|
Power Sources |
7.6 m | 15.2 m |
| Standard power source 400 V | 059690 | 059691 |
| Long Machine Torch 180° 7.6 m | |||
|---|---|---|---|
| Power Sources | with remote control hanging panel | without remote control hanging panel | |
| Power source with CPC port and voltage divider 400 V | 059694 | 059693 | |
| Power source with CPC port, voltage divider, and serial port 400 V | 059697 |
|
|
| Long Machine Torch 180° 15.2 m | |||
|---|---|---|---|
| Power Sources | with remote control hanging panel | without remote control hanging panel | |
| Power source with CPC port and voltage divider 400 V | 059695 | 059681 | |
| Power source with CPC port, voltage divider, and serial port 400 V | 059698 | ||
.png)
| Power | Thickness | Cutting Speed |
|---|---|---|
| Recommended | 32mm | 500 mm/min |
| 38mm | 250 mm/min | |
| Separation (manual cutting) | 50mm | 125 mm/min |
| Piercing | 22mm |
Consumables
.png)
Maximum Productivity
- Work operations are completed faster due to cutting speeds that are 5 times higher than oxy-fuel for carbon steel with a thickness of 12 mm.
- Excellent cut quality and grooving save time in grinding and edge preparation.
- Cutting time is maximized at a permissible 100% duty cycle.
Low Operating Costs
- Extending the lifespan of consumable parts can reduce costs by up to four times compared to other systems within this power range.
- Electrode end-of-life detection protects the torch and workpiece from damage caused by automatic power interruption when the electrode reaches the end of its life.
Ease of Use in Cutting and Grooving
- No need to change air pressure. Smart Sense™ technology ensures consistently correct settings.
- Allows for various types of work using a multifunctional, easy-to-operate torch.
Designed and Tested to Withstand the Toughest Conditions
- Duramax™ Hyamp torches are designed to withstand heavy impacts and high temperatures.
- SpringStart™ technology ensures stable ignition and higher reliability of the torch.
- Maximum uptime with low maintenance.
Product Range Overview
| Cutting Performance | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Recommended | 10 mm | 10 mm | 10 mm | 20 mm | 25 mm | 32 mm | 38 mm |
| Separation | 16 mm | 16 mm | 16 mm | 32 mm | 38 mm | 50 mm | 57 mm |
| Output Range | 15-30 | 15-30 | 15-30 | 20-65 | 25-85 | 30-105 | 30-125 |
| Input Phase | Single | Single | Three | Three | Three | Three | Three |
| Application Options | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Machine Cutting | ● | ● | ● | ● | ● | ||
| Drag Cutting | ● | ● | ● | ● | ● | ||
| FineCut | ● | ● | ● | ● | ● | ● | ● |
| Marking | ● | ● | |||||
| Precision Grooving | ● | ||||||
| Maximum Grooving Control | ● | ● | ● | ● | ● | ||
| Grooving with Maximum Removal | ● | ● | ● | ● | |||
| HyAccess™ | ● | ● | ● | ● | ● | ● | |
| FlushCut™ | ● | ● | ● | ● | ● |
