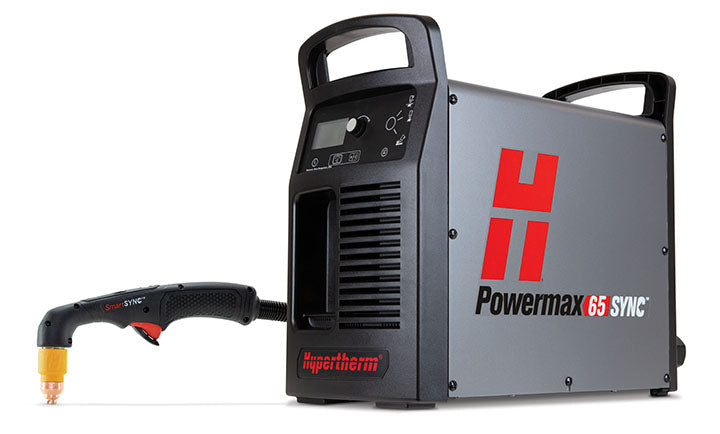

Powermax65 SYNC Plasma Cutting Machine, 7.6m Hand Torch
Professional plasma system for manual cutting and grooving of materials up to 38 mm thick and machine piercing of materials up to 25 mm thick. The new air plasma system Powermax65 SYNC cuts quickly through thick materials with maximum power and performance. A permitted duty cycle of 100%, piercing capability of 25 mm, and metal removal rate during grooving of 12.5 kg/hour make the Powermax65 SYNC a tool for any cutting and grooving in the industry. The new Duramax HyampTM torch series is capable of meeting the requirements of the widest range of cutting and grooving applications.
Powermax65 SYNC Plasma Cutting Machine, 7.6m Hand Torch
Description
Description
.png)
Product Specifications
Torches
Powermax 65 SYNC (input voltage 400 V, 3 phases, CE certification)
| Hand Torch 75° | ||
|---|---|---|
|
Power Sources |
7.6 m | 15.2 m |
| Current source with CPC port and voltage divider | 083358 | 083359 |
| Long Machine Torch 180° 7.6 m | |||
|---|---|---|---|
| Power Sources | with remote control hanging panel | without remote control hanging panel | |
| Current source with CPC port and voltage divider | 083362 | 083327 | |
| Current source with CPC port, voltage divider and serial port | 083366 | ||
| Long Machine Torch 180° 15.2 m | |||
|---|---|---|---|
| Power Sources | with remote control hanging panel | without remote control hanging panel | |
| Current source with CPC port and voltage divider | 083363 | 083364 | |
| Current source with CPC port, voltage divider and serial port | 083367 | ||
.png)
| Power | Thickness | Cutting Speed |
|---|---|---|
| Recommended | 20mm | 500 mm/min |
| 25 mm | 250 mm/min | |
| Separation (manual cutting) | 32 mm | 125 mm/min |
| Piercing | 16 mm |
Cartridges
.png)
Maximum Productivity
- Work operations are completed faster due to cutting speeds that are 5 times higher than oxy-fuel for carbon steel thickness of 12 mm.
- Excellent cut quality and grooving save time in grinding and edge preparation.
- Cutting time is maximized at a permitted 100% duty cycle.
Low Operating Costs
- Extending the lifespan of consumable parts reduces costs by up to four times compared to other systems with this power range.
- Electrode end-of-life detection function protects the torch and workpiece from damage caused by automatic power interruption when the electrode reaches the end of its life.
Ease of Use in Cutting and Grooving
- No need to change air pressure. Smart Sense™ technology ensures consistently correct settings.
- Allows for various types of work using a multifunctional, easy-to-operate torch.
Designed and Tested to Withstand the Toughest Conditions
- Duramax™ Hyamp torches are designed to withstand heavy impacts and high temperatures.
- SpringStart™ technology ensures stable starting and higher reliability of the torch.
- Maximum uptime with low maintenance.
Product Line Overview
| Cutting Capacity | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Recommended | 10 mm | 10 mm | 10 mm | 20 mm | 25 mm | 32 mm | 38 mm |
| Separation | 16 mm | 16 mm | 16 mm | 32 mm | 38 mm | 50 mm | 57 mm |
| Output Range | 15-30 | 15-30 | 15-30 | 20-65 | 25-85 | 30-105 | 30–125 |
| Input Phases | Single | Single | Three | Three | Three | Three | Three |
| Applications | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Machine Cutting | ● | ● | ● | ● | ● | ||
| Drag Cutting | ● | ● | ● | ● | ● | ||
| FineCut | ● | ● | ● | ● | ● | ● | ● |
| Marking | ● | ● | |||||
| Precision Grooving | ● | ||||||
| Maximum Grooving Control | ● | ● | ● | ● | ● | ||
| Grooving with Maximum Removal | ● | ● | ● | ● | |||
| HyAccess™ | ● | ● | ● | ● | ● | ● | |
| FlushCut™ | ● | ● | ● | ● | ● |
