Hypertherm  |  SKU: 059527

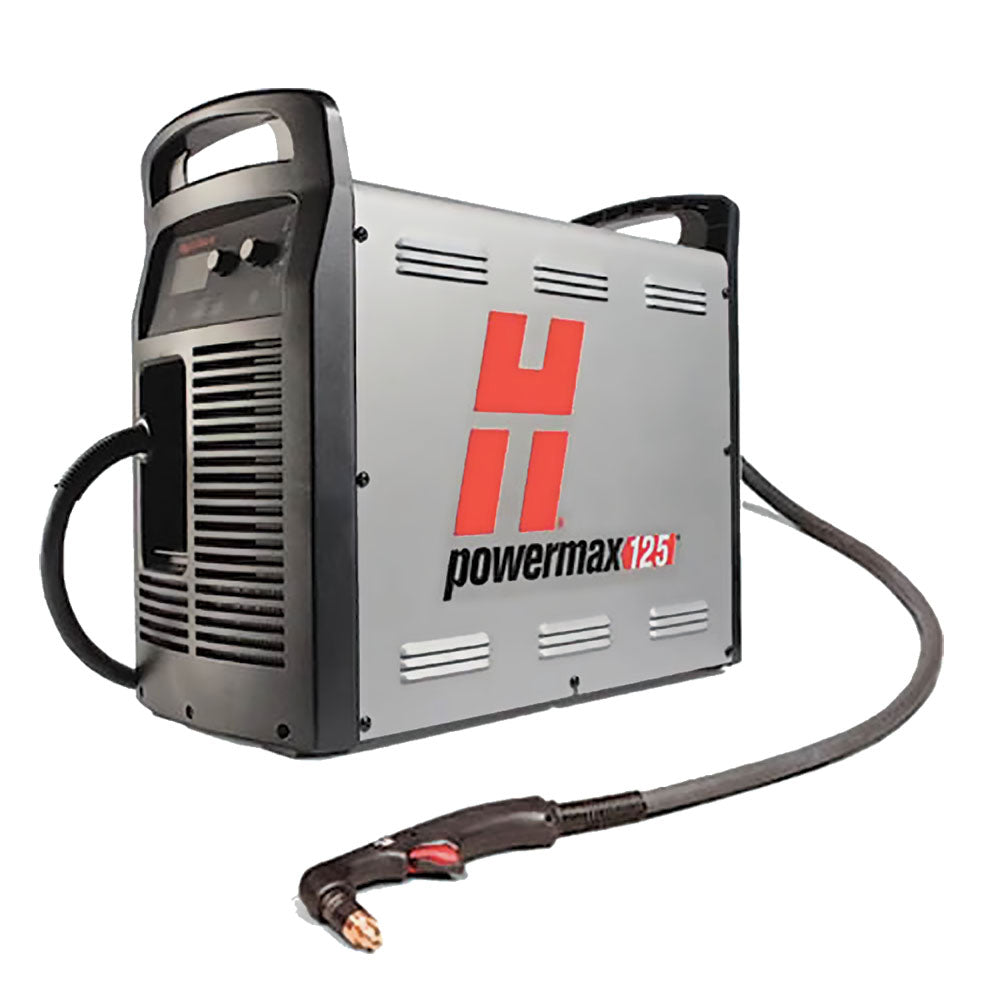

Powermax125 Plasma Cutting Machine, Hand Torch 15m

Professional plasma system for manual cutting and grooving of materials up to 38 mm thickness and machine piercing of materials up to 25 mm thickness. The new Powermax125 air plasma system cuts quickly even through thick materials with maximum power and efficiency. With a permissible duty cycle of 100%, a piercing capability of 25 mm, and a metal removal rate during grooving of 12.5 kg/hour, the Powermax125 is a tool for any cutting and grooving in the industry. The new Duramax HyampTM torch series is capable of meeting the demands of the widest range of cutting and grooving applications. Also choose from torches and consumables for Powermax125.
Variante
€11.788,00
Shipping calculated at checkout.

Description

Product Specifications

Powermax 125 (input voltage 400 V, 3 phases, CE certification)

  Hand Torch 85°
Power Sources 7.6 m 15.2 m
Power source with CPC port and voltage divider 059526 059527

​​​​

​​​​​​hand torch 85



 Hand Torch 85° and 15° without remote control hanging panel
Power Sources 7.6 m 15.2 m
Power source with CPC port and voltage divider 059528 059572

​​​​

​​​​​​hand torch 15
  Long Machine Torch 180° 7.6 m
Power Sources with remote control hanging panel without remote control hanging panel with I/O cables (without panel)
Power source with CPC port and voltage divider 059530
Power source with CPC port, voltage divider, and serial port   059532 059534

​​​​

​​​​​​long machine torch 180
  Long Machine Torch 180° 15.2 m
Power Sources with remote control hanging panel without remote control hanging panel with I/O cables (without panel)
Power source with CPC port and voltage divider 059531
Power source with CPC port, voltage divider, and serial port   059533 059535

​​​

​​​​​​

​​​​​​robotic torch 90
Power Thickness Cutting Speed
Recommended 38 mm 457 mm/min
  44 mm 250 mm/min
Separation (manual cutting)  57 mm 125 mm/min
Piercing 25 mm



powermax 125

Maximum Productivity

  • Work operations are completed faster due to cutting speeds that are 5 times higher than oxy-fuel for carbon steel of 12 mm thickness.
  • Excellent cut quality and grooving saves time in grinding and edge preparation.
  • Cutting time is maximized at a permissible 100% duty cycle.

Low Operating Costs

  • Extending the lifespan of consumables can reduce costs by up to four times compared to other systems with this range of current ratings.
  • End-of-life electrode detection protects the torch and workpiece from damage caused by automatic power interruption when the electrode reaches the end of its life.

Ease of Use in Cutting and Grooving

  • No need to change air pressure. Smart Sense™ technology ensures consistently correct settings.
  • Allows for various types of work using a multifunctional, easy-to-operate torch.

Designed and Tested to Withstand the Toughest Conditions

  • Duramax™ Hyamp torches are designed to withstand heavy impacts and high temperatures.
  • SpringStart™ technology ensures stable starting and higher torch reliability.
  • Maximum uptime with low maintenance.



plasma cutting machines

Product Line Overview

plasma cutting machines

Cutting Performance Powermax30 XP Powermax30 AIR Powermax45 XP Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC Powermax125
Recommended 10 mm 10 mm 10 mm 20 mm 25 mm 32 mm 38 mm
Separation 16 mm 16 mm 16 mm 32 mm 38 mm 50 mm 57 mm
Output Range 15-30 15-30 15-30 20-65 25-85 30-105 30-125
Input Phases Single Single Three Three Three Three Three
Usage Options Powermax30 XP Powermax30 AIR Powermax45 XP Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC Powermax125
Machine Cutting     ● ● ● ● ●
Drag Cutting     ● ● ● ● ●
FineCut ● ● ● ● ● ● ●
Marking ●   ●
Precision Grooving     ●
Maximum Grooving Control     ● ● ● ● ●
Grooving with Maximum Removal       ● ● ● ●
HyAccess™ ●   ● ● ● ● ●
FlushCut™     ● ● ● ● ●

Parameters
