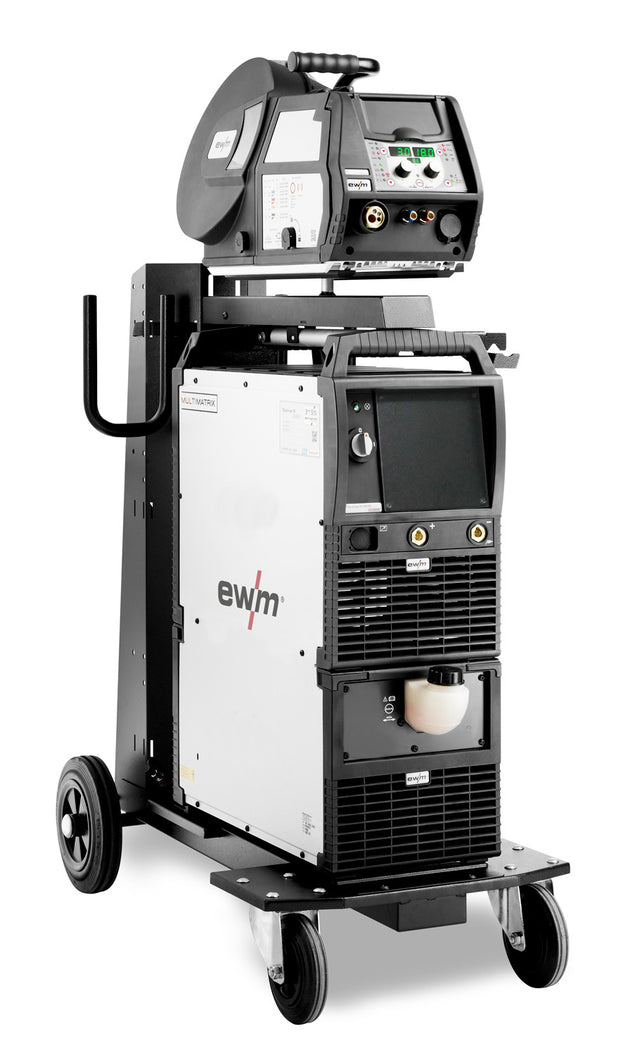

EWM - Taurus 505 Synergic S HP MM TDW
Sold out
- Welding machine with water cooling and separate wire feeder drive 4X HP with single-button
- synergic control HP
- Adjustable crater functions at the start and end of the weld
- Program run with 16 programs for each JOB
- Equipped with synergistic characteristics certified according to ČSN EN 1090 for EWM forceArc, rootArc, and superPuls at no extra charge
€6.356,69
Unit price
/
Unavailable
Shipping calculated at checkout.
Description
Description
- Welding machine with water cooling and separate wire feeder drive 4X HP with single-button
- synergic control HP
- Adjustable crater functions at the start and end of the weld
- Program run with 16 programs for each JOB
- Equipped with synergistic characteristics certified according to ČSN EN 1090 for EWM forceArc, rootArc, and superPuls at no extra charge
- Equipped with synergistic characteristics for welding steel/CrNi/aluminum in protective gas (MSG) at no extra charge
- Suitable for manual welding with coated electrodes, TIG welding, and grooving at no extra charge
- Free WPQR package for certification including EXC2 according to ČSN EN 1090 and for welding unalloyed steels including S355
- Continuously adjustable welding arc dynamics (inductor effect)
- High power reserves due to high permissible load and thus lower heating of all components guarantee longer service life in practice
- Highly precise, powerful 4-roller wire feed drive EWM eFeed for safe feeding of all solid and cored wires
- Equipped for steel wire 1.2 mm
- Very good torch cooling, thus saving costs on consumable parts of the torch due to a powerful rotary pump and a 6-liter water tank
- Saves current due to high efficiency and standby function
- Simple polarity change for welding without tools
- Ground short circuit control (PE protection)
- High tolerance to network voltage, thus unlimited capability for generator operation
- Protected against splashing water IP23
- Extremely suitable for use with long hose bundles
- Option to connect a remote control and functional torch
- HP control in the wire feeder can be easily swapped for LP control at any time
- Option to supply the trolley Trolly 55-5
| Taurus | 405 | 505 |
| Network voltage (tolerance) | 3 x 400 V (-25 % - +20 %) | |
| Network fuse (slow) | 3 x 32 A | |
| No-load voltage | 80 V | |
| Welding current adjustment range | 5 A - 400 A | 5 A - 500 A |
| Permissible load 40 °C | 400 A / 100 % |
500 A / 60 % 430 A / 100 % |
| cos φ | 0.99 | |
| Efficiency grade | 90% | |
| Dimensions LxWxH in mm | 625 x 300 x 865 | |
| Weight | 61 kg | |
| Wire feed dimensions LxWxH in mm | 660 x 280 x 380 | |
| Weight of wire feed | 13 kg | |
| Dimensions of transport trolleys in mm | 1015 x 505 x 1105 | |
| Weight of transport trolleys | 35 kg | |
